Zu TGS Vibro Hammers & Power Packs

Übriges auf Lager

15084 - 1 St. Double Barrel Tagline mit 30" Reel

15084 - 1 St. Double Barrel Tagline mit 30" Reel

  • Typ : TAG-1266
  • Gewicht : ca. 385 kg
15786 15787 15788 15789 4 Pc. Motor Driven Deck Towers with accessories for operation of Electro Hydraulic Grabs

15786 15787 15788 15789 4 Pc. Motor Driven Deck Towers with accessories for operation of Electro Hydraulic Grabs



  • Type : MOT-DT-5M-W
  • Total cable length capacity: 80 mtr
  • Cable cross-section of reeling : 4x25mm2
  • Cable included on Reel: 80 mtr - 4x25mm2
  • Weight of the Deck Tower: approx. 3.200 kg

Each Deck Tower is executed with:

  • 1x Electr. Switch Box
  • 1x Motorised Cable Reel Drum with 80 meter cable (The Cable Reel will be driven by the Electro Motor)
  • Motor specification: Power :  2x 1.5 kW
  • 1x Slewing Ring (For 335º mechanical Rotation of the Deck Tower)
  • 4x Magnet (extra strong):
  • 1x Cable Sheave with rolls
  • 1x Arm (length can be changed by removing the bolts and putting them on another position)

Suitable for Electro Hydraulic Grabs up to max 66KW- (S3 operated grabs) - With Motor voltage, Frequency, Phase : 400v or 440V -  50Hz or 60Hz., 3 Phase + earth

17701 Single Barrel Tagline with 20" Reel

17701 Single Barrel Tagline with 20" Reel

  • Type : TAG-666
  • Cable Pull out: approx 41 meter
  • Weight : approx 170 kg
17383 Grapple Hitachi EX1200
Verkauft

17383 Grapple Hitachi EX1200 Verkauft

  • Typ : GRAP-HIT-EX1200
  • Kapazität : 15 ton
  • Leergewicht : ca. 7.500 kg

Hauptabmessungen:

  • Breite offen : ca. 3750mm
  • Schalenbreite : 900mm -1500mm
17432,33,34,35,36,37,38,39 8 St. Heavy Duty Hydraulische Kettenzüge (in Anbau)

17432,33,34,35,36,37,38,39 8 St. Heavy Duty Hydraulische Kettenzüge (in Anbau)

  • Typ : CP-300T
  • Inhalt : bis 300 ton Horizontal
  • Leergewicht : ca. 12 ton

Hauptabmessungen:

  • Länge : ca. 5800mm
  • Breite : ca. 1310mm
  • Höhe: ca. 2320mm
1201 & 0022 Power Pack (HPU) / Diesel Aggregat (mehrere vorrätig)

1201 & 0022 Power Pack (HPU) / Diesel Aggregat (mehrere vorrätig)

  • Diesel motor: Caterpillar 242 KW/ 239 PK - HP
  • Hydraulisch System: Open, kontrollierbaren flow
  • Main power: 400 l/min.
  • Max Arbeitsdrück: 350 bar
  • Hydraulischer Tank: 900 ltr
  • Hauptabmessungen: LxBxH 4000x1650x1940mm
  • Gewicht: ca. 5.600 kg

Das hydraulisch System ist ausgelegt für Bio Öl (Panolin)

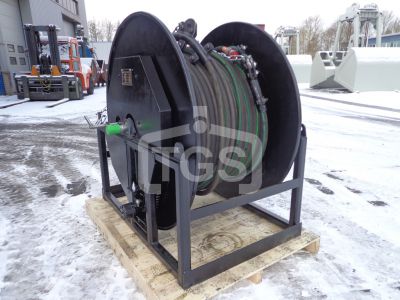

13061 Hydraulische Schlauchrolle (1 St. vorrätig)

13061 Hydraulische Schlauchrolle (1 St. vorrätig)

  • Typ: Hose Reel 1"
  • Inhalt: 2x 100m Hose
  • Leergewicht inkl. Schlauchen: ca. 1200 kg
  • Max. Öldruck hydraulischen Motor: 40 Bar
  • Max. Öl Flow hydraulischen Motor: 16 ltr/min
  • Max. Öldruck Schlauchen: 350 Bar
  • Max. Ziehgewicht Schlauchen: 350 kg
14625 Hydraulische Schlauchrolle - & 16261 - 16262 - 16704

14625 Hydraulische Schlauchrolle - & 16261 - 16262 - 16704

  • Typ: Hose Reel 1"
  • Inhalt: 2x 100m Hose
  • Leergewicht inkl. Schlauchen: ca. 1200 kg
  • Max. Öldruck hydraulischen Motor: 40 Bar
  • Max. Öl Flow hydraulischen Motor: 16 ltr/min
  • Max. Öldruck Schlauchen: 350 Bar
  • Max. Ziehgewicht Schlauchen: 350 kg

Ausgeführt mit extra Führungsrollen

17827 Tripple Barrel Tagline with 30"Reel
Verkauft

17827 Tripple Barrel Tagline with 30"Reel Verkauft

  • Type : TAG-1866
  • Cable Pull out: approx 61 meter
  • Weight : approx 530 kg
0082 1 St. Power Pack (HPU) / Diesel Aggregat
Verkauft

0082 1 St. Power Pack (HPU) / Diesel Aggregat Verkauft

  • Diesel motor: Caterpillar 433 KW/ 580 PK - HP
  • Hydraulisch System: Open, kontrollierbaren flow
  • Main power: 600 l/min.
  • Max Arbeitsdrück : 350 bar
  • Max frequenz: 2100 rpm
  • Tank: 680 ltr
  • Hydraulische Tank: 2600 ltr
  • Hauptabmessungen: LxBxH 5450x1750x2300mm
  • Gewicht : ca. 9.200 kg

Das hydraulisch System ist ausgelegt für Bio Öl (Panolin)
