Hydraulic Grabs

13400 1 pc. Heavy Duty Hydraulic Orange Peel Grab

13400 1 pc. Heavy Duty Hydraulic Orange Peel Grab

  • Type : HOPGH-3S6000
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : 3 open tines shells with interchageable ESCO teeth
  • Rotation : None, fitted with plate with lifting eyes
  • If required: The grab can be executed with hydraulic or mechanical rotation
  • Capacity: 6m3
  • Empty Weight : approx.  9.100 kg (9.1 ton)

Main Dimensions:

  • Spread open : approx. 3850-4400mm
  • Spread closed : approx. 3300mm
  • Height open : approx. 3800mm
  • Height closed : approx. 4200mm
17397 - 17398 2 pc. Heavy Duty Hydraulic Orange Peel Grabs (Currently under construction)
Sold

17397 - 17398 2 pc. Heavy Duty Hydraulic Orange Peel Grabs (Currently under construction) Sold

  • Type : HOPGH-DK2500
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : Heavy Duty, 5 shells with interchangeable Esco teeth
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Capacity : 2500 ltr (2.5 m3)
  • Empty Weight :  approx. 5.800 kg (5.8 ton)

Main Dimensions:

  • Spread open : approx. 3336mm
  • Spread closed : approx. 2387mm
  • Height open : approx. 2801mm
  • Height closed : approx. 3222mm
xxx 1 Pc. Hydraulic Orange Peel Grab

xxx 1 Pc. Hydraulic Orange Peel Grab

  • Type : HOPG-SM-800
  • Execution:  for handling heavy scrap or handling scrap
  • Shell execution : 4 half closed shells with integrated teeth
  • Rotation : Currently none (can be executed with hydraulic rotator if required)
  • Capacity : 800ltr (0.8m3)
  • Empty Weight :  approx. 1.550 kg

Main Dimensions:

  • Spread open : approx. 2632mm
  • Spread closed : approx. 1654mm
  • Height open : approx. 2141mm
  • Height closed : approx. 1695mm
10624 1 pc Hydraulic Orange Peel Grab

10624 1 pc Hydraulic Orange Peel Grab

  • Type : HOPGL4000
  • Piled density: up to max 1.2 tonm3
  • Shell execution : 6 open shells
  • Rotation : None
  • If required: The grab can be executed with hydraulic or mechanical rotation
  • Capacity: 4m3
  • Empty Weight : approx.  4.000kg (4 ton)

Main Dimensions:

  • Spread open : approx. 4410mm
  • Spread closed : approx. 2800mm
  • Height open : approx. 2550mm
  • Height closed : approx. 3400mm
10194 1 pc. Hydraulic Clamshell Grab

10194 1 pc. Hydraulic Clamshell Grab

  • Type : HC-2500
  • Execution : Suitable for charging and discharging of rolling bulk materials or light dredging purposes
  • Rotation : None, fitted with plate and lifting eye
  • Capacity : 2500 ltr (2.5m3)
  • Empty weight : approx. 2.200 kg

Main Dimensions:

  • Spread open : approx. 3200mm
  • Spread closed : approx. 2200mm
  • Height closed : approx. 2600mm
  • Width : 1800mm
10234 1 pc. Hydraulic Orange Peel Grab

10234 1 pc. Hydraulic Orange Peel Grab

  • Type : HOPGH-MD500
  • Exection: Heavy Duty, for handling scrap
  • Shell execution :  5 shells with integrated teeth
  • Rotation : Mechanical 270°
  • Capacity : 500 ltr (0.5m3)
  • Empty Weight :  approx. 1350 kg

Main Dimensions:

  • Spread open : approx. 2250mm
  • Height open : approx. 1650m
13306 1 pc. Heavy Duty Hydraulic Salvage Grab / Wreck Clamp

13306 1 pc. Heavy Duty Hydraulic Salvage Grab / Wreck Clamp

  • Type : HSWC500-1000
  • Execution: Heavy Duty, Hydraulic
  • Shell execution : 4 shells -which can be divided to 2 shells
  • Rotation : None, fitted with plate with lifting eyes
  • Capacity: up to 1000 ton with 4 shells - up to 500 ton with 2 shells
  • Empty Weight : approx. 165 ton with 4 shells - approx. 75 ton with 2 shells

Main Dimensions:

In 4 shell execution:

  • Height open : approx. 7480mm
  • Height closed : approx. 8780mm
  • Spread open: approx. 7000-8840mm
  • Spread closed: approx. 5615mm
  • Width: approx. 4214-4718mm
14892  Heavy Duty Hydraulic Tube Clamp ( 1 pc. available)

14892 Heavy Duty Hydraulic Tube Clamp ( 1 pc. available)

  • Execution: Heavy Duty, Hydraulic
  • Can be executed with or without Outriggers
  • Shell execution: each of the 2 shells executed with shark tooth in overlapping modus
  • Rotation : None, fitted with plate with lifting eye
  • Capacity: Suitable for the removal of pieces of pipes up to max 85 ton
  • Empty Weight :
  • approx. 40.000 kg (40 ton) with outriggers
  • approx. 27.000 kg (27 ton) without outriggers

Main Dimensions:

  • Height open: approx. 7000mm
  • Height closed : approx. 7300mm
  • Spread open: approx. 3210-4140mm
  • Spread closed: approx. 3020mm
  • Width: approx. 1850mm - up to 9050mm with outriggers
14431 1 pc. Heavy Duty Hydraulic Pile/ Tube Grab

14431 1 pc. Heavy Duty Hydraulic Pile/ Tube Grab

  • Type : HBG1100
  • Execution: Hydraulic
  • Shell execution : 3 shells - ø1100mm
  • Rotation : None, fitted with plate with lifting eye
  • Empty Weight : approx.  3.500 kg (3.5 ton)

Main Dimensions:

  • Length : approx. 3500mm
15866 1 Pc. Heavy Duty Hydraulic Rock Handling Grab
Sold

15866 1 Pc. Heavy Duty Hydraulic Rock Handling Grab Sold

  • Type : HSG-HS-4s-4T
  • Execution : Heavy Duty, 4 shells with interchangeable ESCO teeth
  • Rotation : Hydraulic 360°
  • Capacity : For handling single rocks up to 4 ton
  • Empty weight : approx 2.600 kg (2,6 ton)

Main Dimensions:

  • Spread open : approx. 1910-2350mm
  • Spread closed : approx. 1590mm
  • Height open: approx. 2330mm
  • Height closed : approx. 2490mm
13528-3063 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

13528-3063 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGH20000
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : 6 almost closed shells with integrated teeth
  • Rotation : None, fitted with plate with lifting eye
  • Capacity: 20m3
  • Empty Weight : approx.  55.000 kg (55 ton)

Main Dimensions:

  • Spread open : approx. 7622-8427mm
  • Spread closed : approx. 5204mm
  • Height open : approx. 5661mm
  • Height closed : approx. 7034mm
17874 1 Pc. Hydraulic Clamshell Grab
Sold

17874 1 Pc. Hydraulic Clamshell Grab Sold

  • Type : HC100-IR22-2250
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3 & light dredging purposes
  • Rotation : Hydraulic 360° fitted with strong IR22 rotator
  • Capacity : 2250 ltr (2.25m3)
  • Empty weight : approx. 2300 kg

Main Dimensions:

  • Spread open : approx. 2570mm
  • Spread closed : approx. 2070mm
  • Height open : approx. 1890mm
  • Height closed : approx. 2700mm
  • Width: 1890mm
13130 1 pc. Heavy Duty Hydraulic Pile/ Tube Grab
Sold

13130 1 pc. Heavy Duty Hydraulic Pile/ Tube Grab Sold

  • Type : HBG1360
  • Execution: Hydraulic
  • Shell execution : 2 shells - ø1360mm
  • Rotation : None, fitted with plate with lifting eye
  • Empty Weight : approx.  15.000 kg (15 ton)

Main Dimensions:

  • Height open : approx. 5940mm
  • Height closed : approx. 5790mm
17384-3708 Hydraulic Level Cut Clamshell Grab
Sold

17384-3708 Hydraulic Level Cut Clamshell Grab Sold

  • Type : HLCC
  • Execution : Suitable for light dredging purposes of contaminated loose silt up to max 1,5 ton/m3
  • Closing almost horizontal
  • Rotation : Hydraulic 360°
  • Capacity : 1000 ltr (1.0m3
  • Empty weight : approx. 1.500 kg

Main Dimensions

  • Spread open : approx. 2830-2950mm
  • Spread closed : approx. 1810mm
  • Height open : approx. 2590mm
  • Height closed : approx. 2560m
  • Width : 1320mm
14814 1 Pc. Hydraulic Clamshell Grab
Sold

14814 1 Pc. Hydraulic Clamshell Grab Sold

  • Type : HCZ100-IR10-1750
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3
  • Executed with flloating shafts
  • Rotation : Hydraulic 360°
  • Capacity : 1750 ltr (1.75m3)
  • Empty weight : approx. 1.730 kg

Main Dimensions:

  • Spread open : approx. 2380mm
  • Spread closed : approx. 1955mm
  • Height open : approx. 1750mm
  • Height closed : approx. 2500mm
  • Width : 1600mm
14690 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

14690 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGH-DK1500
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : Heavy Duty, 5 shells with interchangeable Esco teeth
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Capacity : 1500 ltr (1.5 m3)
  • Empty Weight :  approx. 3.450 kg (3.45 ton)

Main Dimensions:

  • Spread open : approx. 3028mm
  • Spread closed : approx. 2181mm
  • Height open : approx. 2568mm
  • Height closed : approx. 2902mm
10810 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

10810 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGH6000
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : 5 closed shells with interchageable ESCO teeth
  • Rotation : None, fitted with plate with lifting eyes
  • If required: The grab can be executed with hydraulic or mechanical rotation
  • Capacity: 6m3
  • Empty Weight : approx. 14.000kg (14 ton)

Main Dimensions:

  • Spread open : approx. 3800-4400mm
  • Spread closed : approx. 3550mm
  • Height open : approx. 3830mm
  • Height closed : approx. 4270mm
13614B 1 pc Heavy Duty Hydraulic Orange Peel Grab
Sold

13614B 1 pc Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGH-DK
  • Execution: Heavy Duty, for handling small and medium sized rocks
  • Shell execution : 5 bottom side closed shells with integrated Hardox 450 teeth points
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Capacity: 4m3
  • Empty Weight : approx.  8.200kg (8.2 ton)

Main Dimensions:

  • Spread open : approx. 3830mm
  • Spread closed : approx. 2740mm
  • Height open : approx. 3180mm
  • Height closed : approx. 3710mm
13613 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

13613 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGN-DK2300
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : Heavy Duty, 5 shells with interchangeable Esco teeth
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Capacity : 2300 ltr (2.3 m3)
  • Empty Weight :  approx. 4.680 kg (4.68 ton)

Main Dimensions:

  • Spread open : approx. 3047-3450mm
  • Spread closed : approx. 2434mm
  • Height open : approx. 2960mm
  • Height closed : approx. 3400mm
14519 1 Pc. Heavy Duty Hydraulic Rock Handling Grab
Sold

14519 1 Pc. Heavy Duty Hydraulic Rock Handling Grab Sold

  • Type : HSG-MD-4s-10T
  • Execution : Heavy Duty, 4 shells with interchangeable ESCO teeth
  • Rotation : Mechanical 270°
  • Capacity : For handling single rocks up to 10 ton
  • Empty weight : approx 4.100 kg (4,1 ton)

Main Dimensions:

  • Spread open : approx. 2890-3340mm
  • Spread closed : approx. 2080mm
  • Height closed : approx. 3510mm
13404 1 pc. Heavy Duty Hydraulic Digging/ Dredging Clamshell Grab
Sold

13404 1 pc. Heavy Duty Hydraulic Digging/ Dredging Clamshell Grab Sold

  • Type : HC32-DK4000
  • Execution : Suitable for Heavy Duty Digging/ Dredging purposes
  • Rotation : Hydraulic 360° by means of a slewing ring with hydro motor.
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Shell execution: Exectuted with integrated Hardox 450 teeth
  • Capacity : 4000 ltr (4m3)
  • Empty weight : approx. 5.700 kg (5.7 ton)

Main Dimensions:

  • Spread open : approx. 3134mm
  • Spread closed : approx. 2569mm
  • Height open: approx. 2633mm
  • Height closed : approx. 3364mm
  • Width : 2100mm
13285 1 pc. Hydraulic Clamshell Grab
Sold

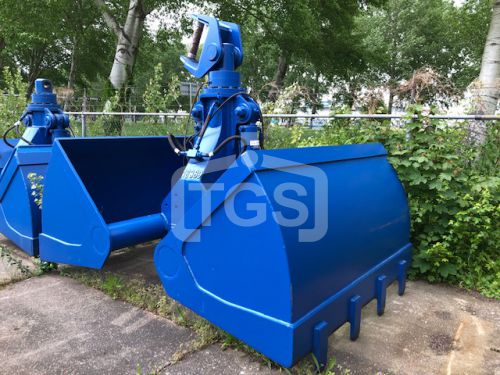

13285 1 pc. Hydraulic Clamshell Grab Sold

  • Type : HC20-HS1750
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3
  • Rotation : Hydraulic 360°
  • Capacity : 1750 ltr (1,75m3)
  • Empty weight : approx. 1830 kg

Main Dimensions:

  • Spread open : approx. 2450mm
  • Spread closed : approx. 2025mm
  • Height open : approx. 1785mm
  • Height closed : approx. 2542mm
  • Width : 1590mm
13283 1 Pc. Hydraulic Clamshell Grab
Sold

13283 1 Pc. Hydraulic Clamshell Grab Sold

  • Type : HC20-HS1500
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3
  • Rotation : Hydraulic 360°
  • Capacity : 1500 ltr (1.5m3)
  • Empty weight : approx. 1735kg

Main Dimensions:

  • Spread open : approx. 2525mm
  • Spread closed : approx. 1960mm
  • Height open : approx. 1800mm
  • Height closed : approx. 2590mm
  • Width : 1300mm
14612 1 Pc. Hydraulic Clamshell Grab
Sold

14612 1 Pc. Hydraulic Clamshell Grab Sold

  • Type : HCZ100-IR22-2000
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3
  • Executed with flloating shafts
  • Rotation : Hydraulic 360° - IR22
  • Capacity : 2000 ltr (2.0m3)
  • Empty weight : approx. 2.030 kg

Main Dimensions:

  • Spread open : approx. 2520mm
  • Spread closed : approx. 2070mm
  • Height open : approx. 1850mm
  • Height closed : approx. 2650mm
  • Width : 1700mm
13778 1 Pc. Hydraulic Clamshell Grab (Closed Model)
Sold

13778 1 Pc. Hydraulic Clamshell Grab (Closed Model) Sold

  • Type : HCSL5000
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 1.6 ton/m3
  • Executed with extra heavy cylinders 140/90
  • Shell execution: Closed with rubber dust vents
  • Executed with overlapping bottom knives & double knives on the inside of the shells
  • Rotation : Currently none. Grab can be executed with a IR22 Hydraulic 360° rotator if required.
  • Capacity : 5000 ltr (5m3)
  • Empty weight : approx. 4.000 kg

Main Dimensions:

  • Spread open : approx. 3120mm
  • Spread closed : approx. 2300mm
  • Height open : approx. 2200mm
  • Height closed : approx. 3200mm
  • Width : 2400mm
15268 1 Pc. Hydraulic Clamshell Grab
Sold

15268 1 Pc. Hydraulic Clamshell Grab Sold

  • Type : HC125-T708-2800
  • Execution : Suitable for charging and discharging of rolling bulk materials with a density up to max 2.0 ton/m3 & light dredging purposes
  • Currently executed with upper side closed shells (can be removed if required)
  • Rotation : Hydraulic 360°
  • Capacity : 2800 ltr (2.8m3)
  • Empty weight : approx. 3300 kg (up to 3600 kg with upper side closed shells

Main Dimensions:

  • Spread open : approx. 2800mm
  • Spread closed : approx. 2450mm
  • Height open : approx. 2290mm
  • Height closed : approx. 3120mm
  • Width : 1800mm

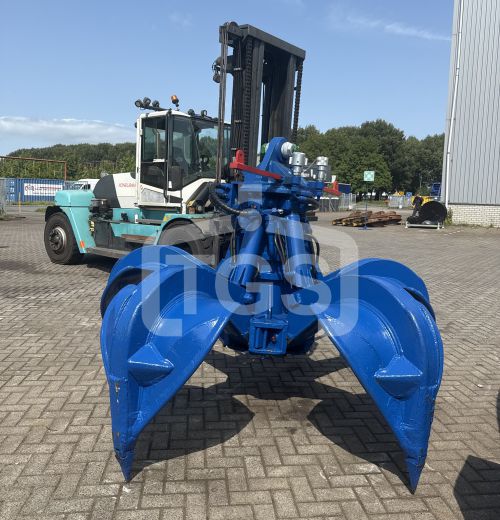

10162 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

10162 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPGH3000
  • Shell execution : 5 closed shells with integrated teeth
  • Rotation : currently none, executed with plate with lifting eye. Can be executed with rotation if required
  • Capacity : 3000 ltr (3.0m3)
  • Empty Weight :  approx. 8000 kg (8 ton)

Main Dimensions:

  • Spread open : approx. 3000mm
  • Spread closed : approx. 2600mm
  • Height open : approx. 2900mm
  • Height closed : approx. 3250mm
15425 1 pc Heavy Duty Hydraulic Orange Peel Grab (currently under construction)
Sold

15425 1 pc Heavy Duty Hydraulic Orange Peel Grab (currently under construction) Sold

  • Type : HOPGH-DK
  • Execution: Heavy Duty, for handling rocks
  • Shell execution : 5 shells with interchangeable teeth points
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • If required: The grab can be executed without rotation and fitted with plate and with lifting eye
  • Capacity: 4m3
  • Empty Weight : approx.  7.900kg (7.9 ton)

Main Dimensions:

  • Spread open : approx. 3832mm
  • Spread closed : approx. 2737mm
  • Height open : approx. 3172mm
  • Height closed : approx. 3671mm
12662 1 pc. Heavy Duty Hydraulic Orange Peel Grab
Sold

12662 1 pc. Heavy Duty Hydraulic Orange Peel Grab Sold

  • Type : HOPG26-DK2000
  • Execution: Heavy Duty, for handling heavy scrap
  • Shell execution : Heavy Duty, 5 shells with integrated teeth
  • Rotation : Hydraulic 360° by means of slewing ring with hydro motor
  • Capacity : 2000 ltr (2.0 m3)
  • Empty Weight :  approx. 3.450 kg (3.45 ton)

Main Dimensions:

  • Spread open : approx. 3080mm
  • Spread closed : approx. 2250mm
  • Height open : approx. 2460mm
  • Height closed : approx. 2890mm
Home//On Stock//Hydraulic Grabs on stock

Contact with TGS

The Grab Specialist B.V.
Draaibrugweg 1
1332 AA Almere
The Netherlands
T: +31 - (0) 36 532 88 22 E: info@tgs-grabs.nl
Menu
Contact
The Grab Specialist B.V.
Draaibrugweg 1
1332 AA Almere
The Netherlands
+31 - (0) 36 532 88 22 info@tgs-grabs.nl
